PMD-706

6-Channel Solid State Field Recorder
(Discontinued Product)

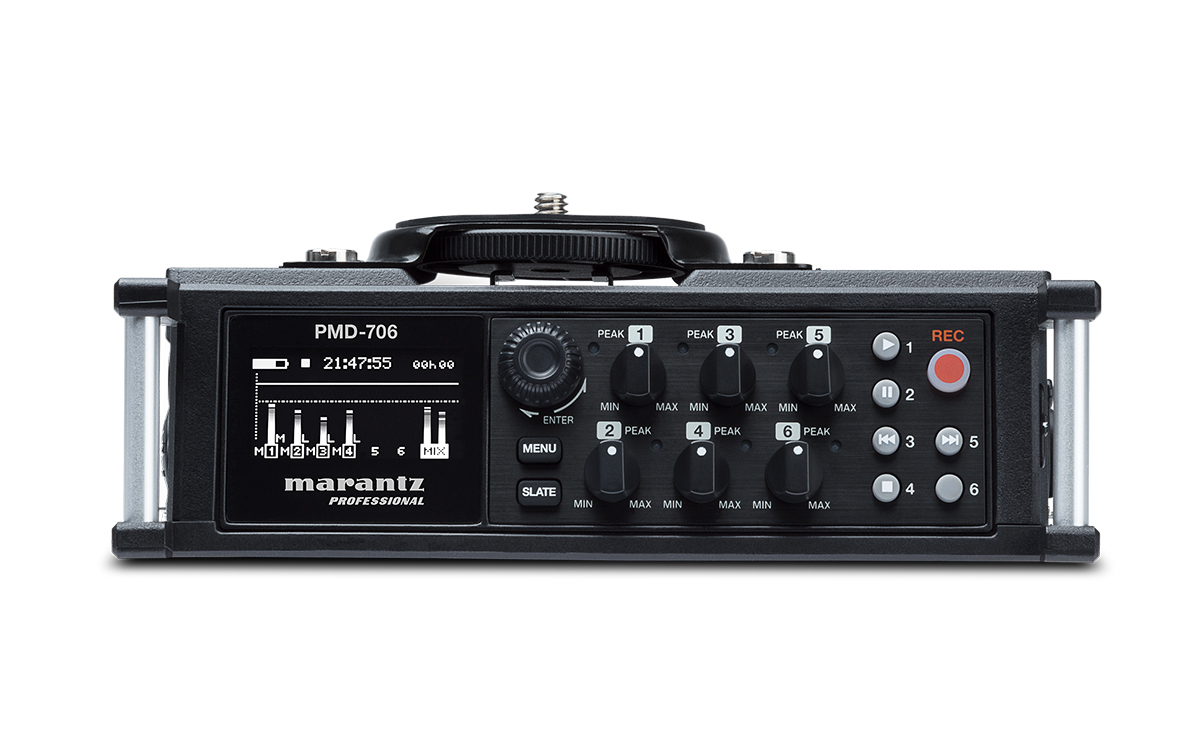

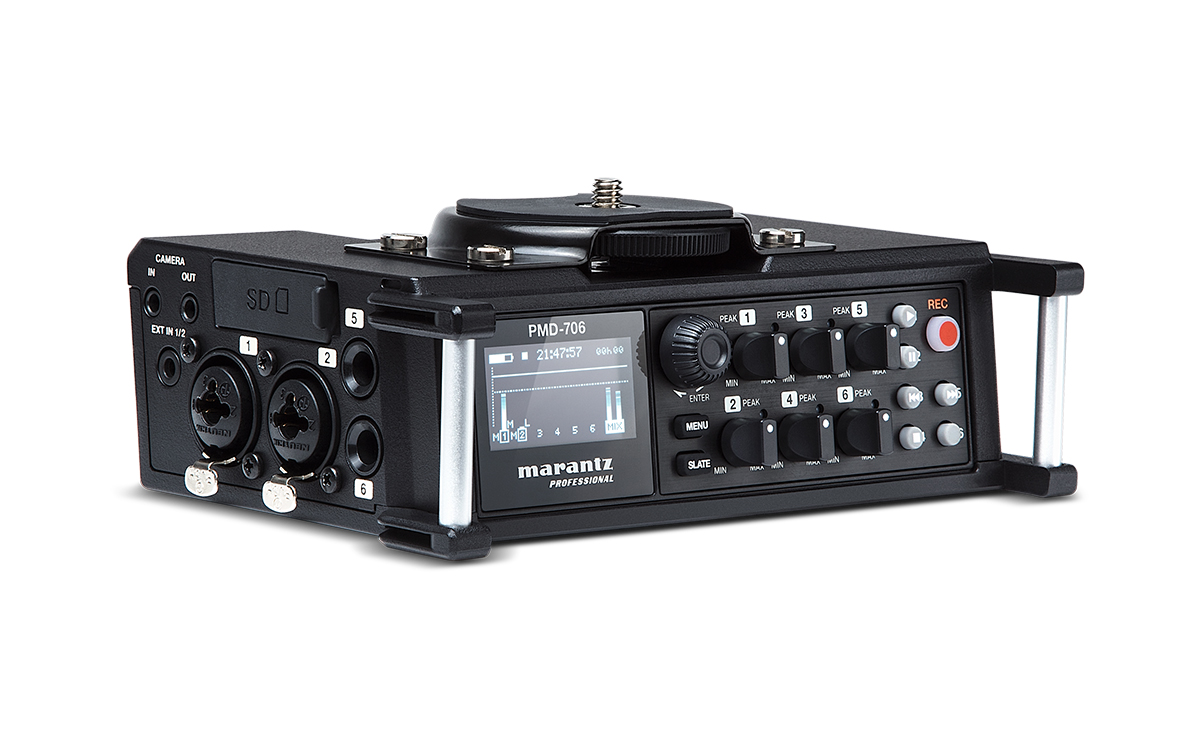

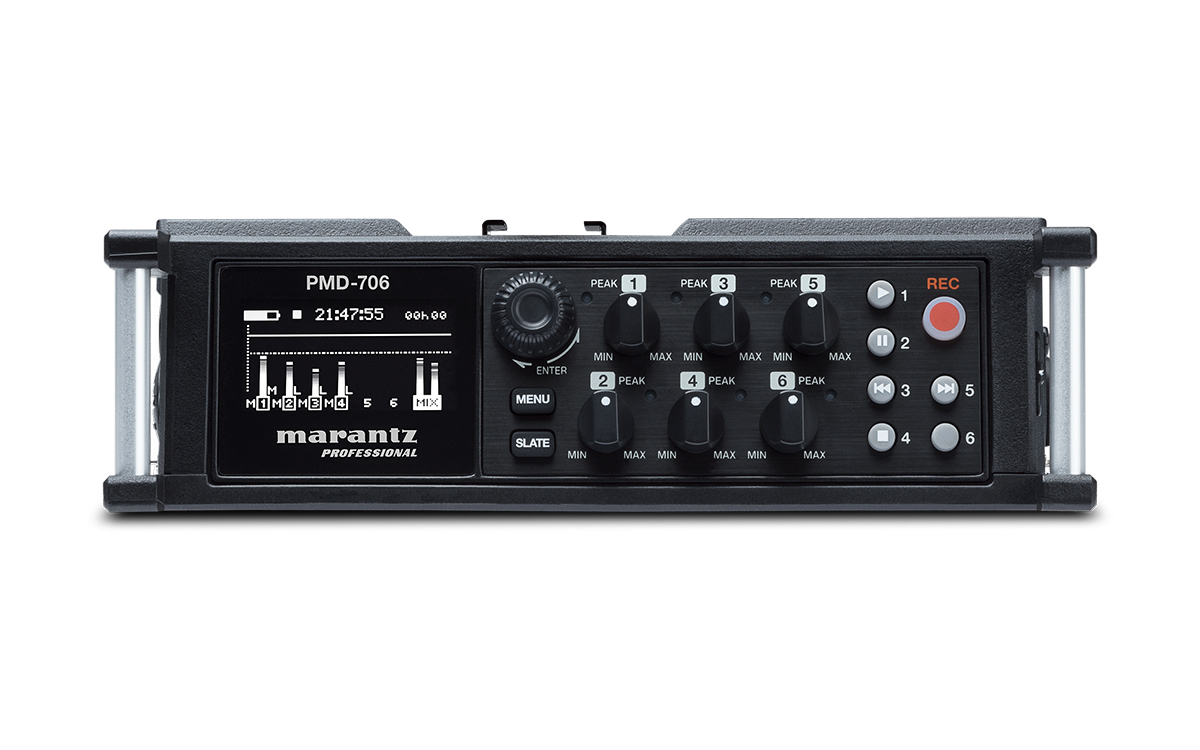

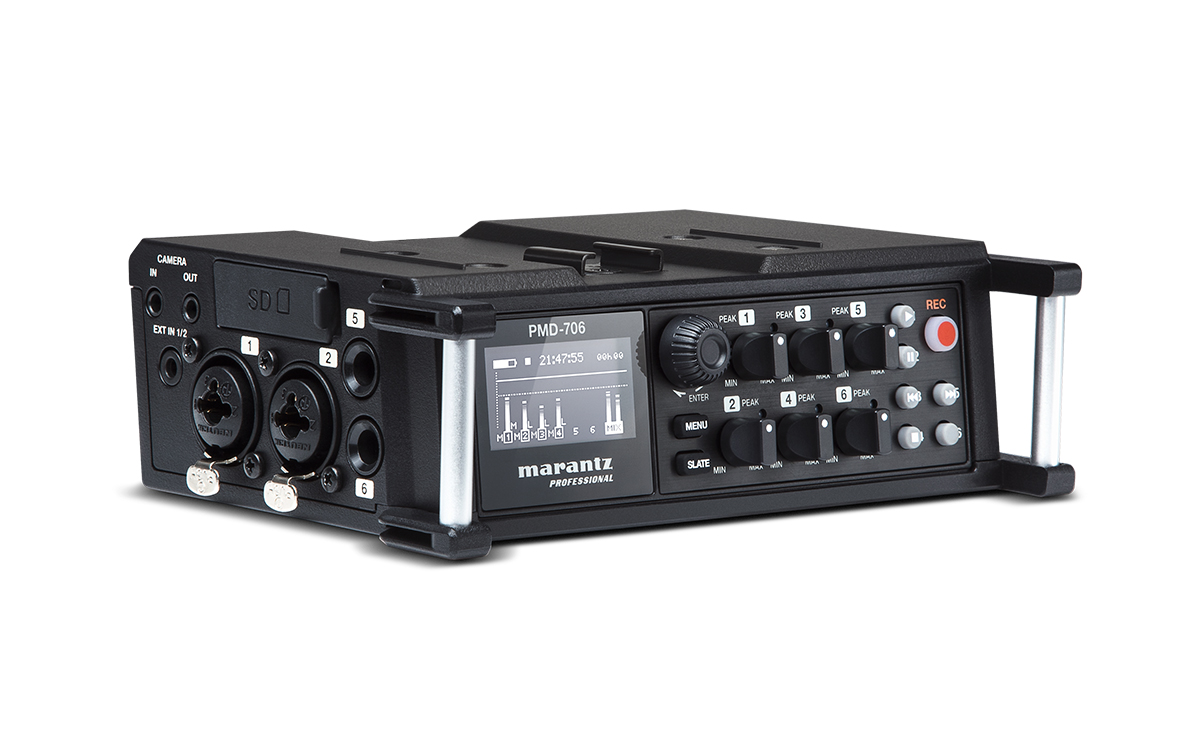

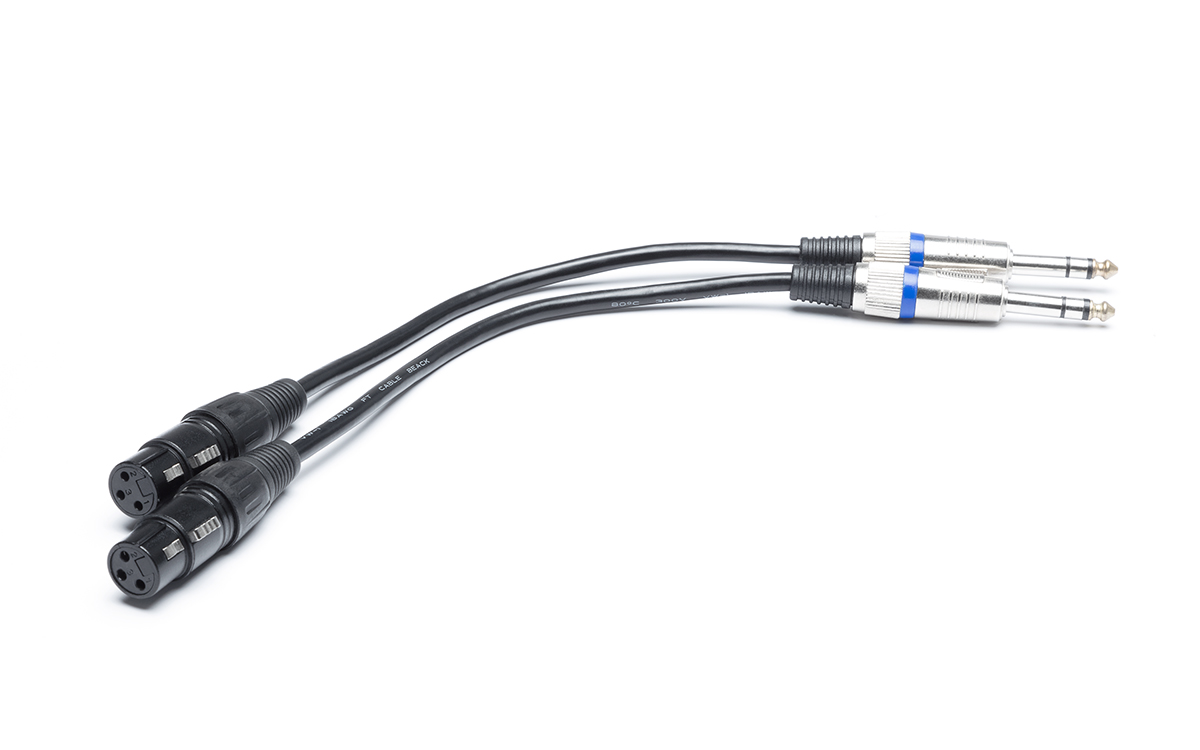

The PMD-706 is an advanced 6-channel field recorder. Featuring (4) XLR combo jacks for MIC & LINE level sources, and (2) ¼” TRS jacks for supporting LINE/MIC level, six high-quality audio tracks can be recorded at once.  There is also a 3.5mm TRS input for extra versatility. Featuring a Dual-Record function that creates a duplicate track at a reduced level, up to (3) ‘safety tracks’ can be created for critical applications. Included are ¼” TRS to XLRF breakout cables for connecting balanced mic cables to inputs 5 and 6.

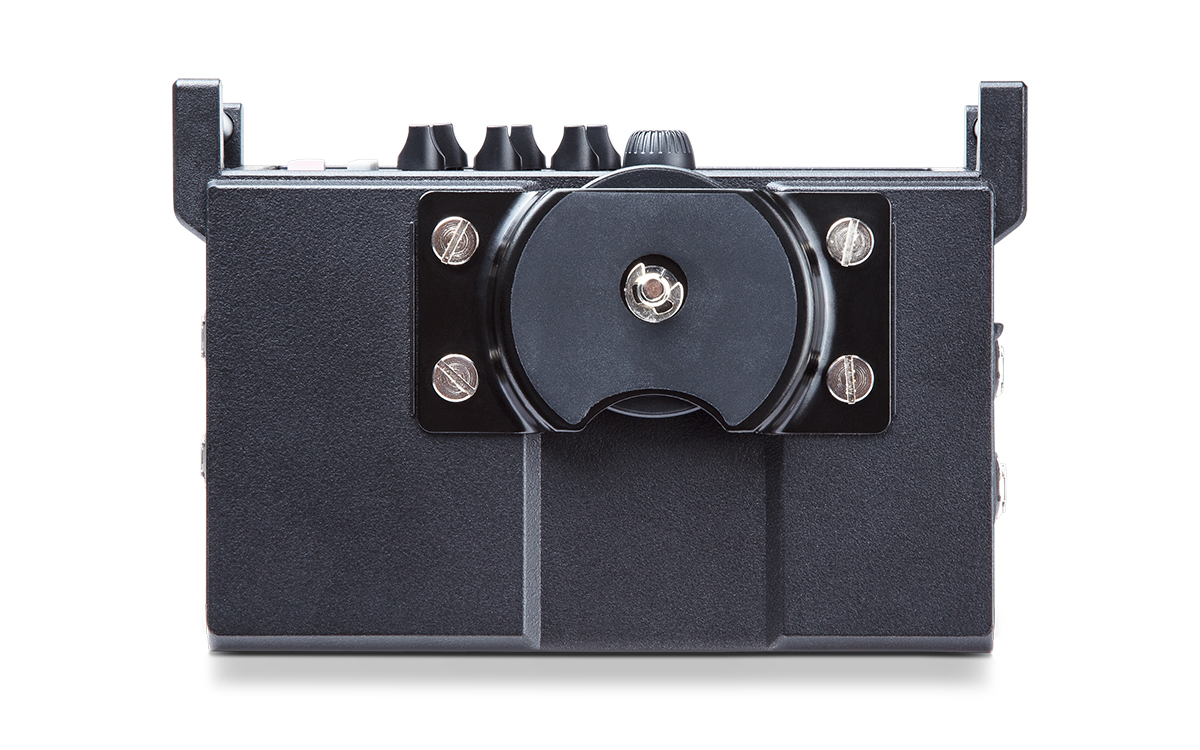

By utilizing the included DSLR camera mounting bracket, the PMD-706 satisfies the requirements required by professional DSLR recordists. This 6-channel recorder excels when attached to a camera or camera rig.

The PMD-706 comes standard with file encryption ability to keep recordings safe from unauthorized access - offering the maximum security for sensitive information.  This works by encrypting WAV files to WAS files.  These encrypted files utilize a 4-digit password protection feature so that only those with the 4-digit key can open and play the files.  To play encrypted files on a computer, use the DMP Mark Editor v2.0.0 software - available in the Downloads section.

  • 6-channel recording up to 96kHz/24-bit
  • SD/SDHC/SDXC recording media

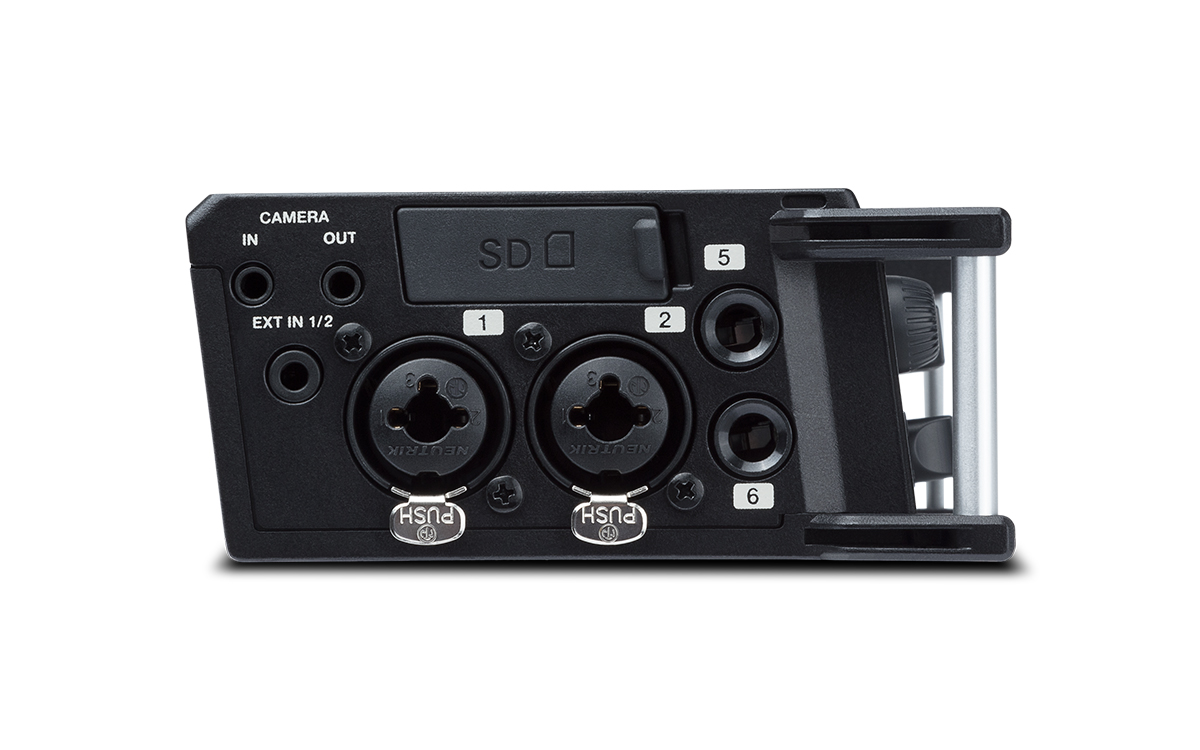

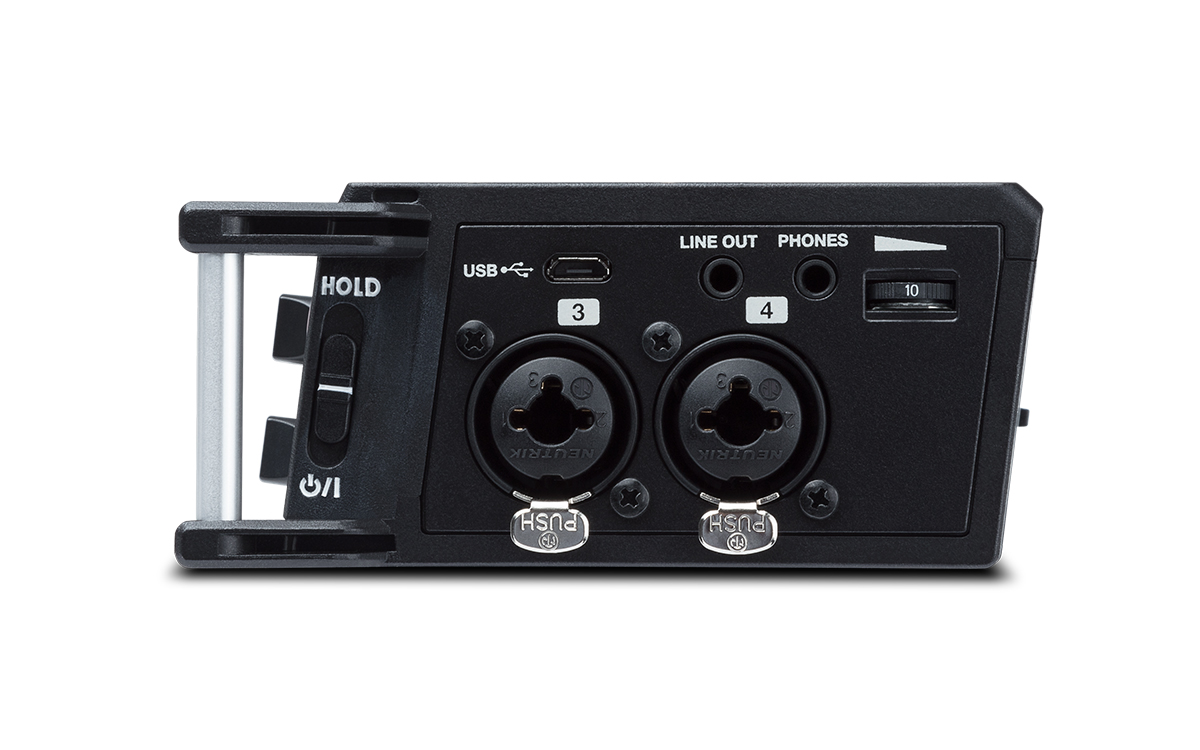

  • (4) XLR/TRS combo jacks for MIC and LINE level inputs
  • High Definition Discreet microphone preamps
  • (2) 1/4" TRS jacks for LINE level inputs
  • 48V phantom power for professional condenser microphones
  • 5-position lo-cut filter, limiting function and M/S microphone decoding
  • Dual-recording mode creates a duplicate track at a reduced level (safety track). Total of (3) safety tracks possible.
  • 3.5mm stereo jack with plug-in power for consumer microphones

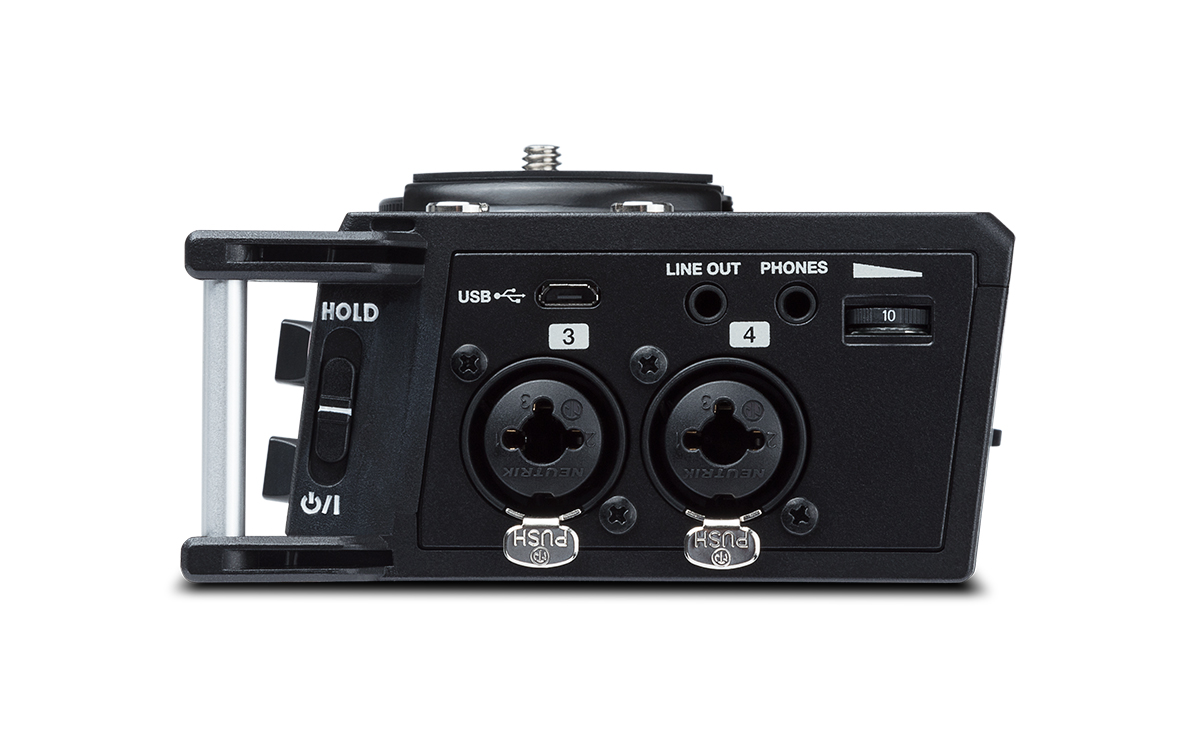

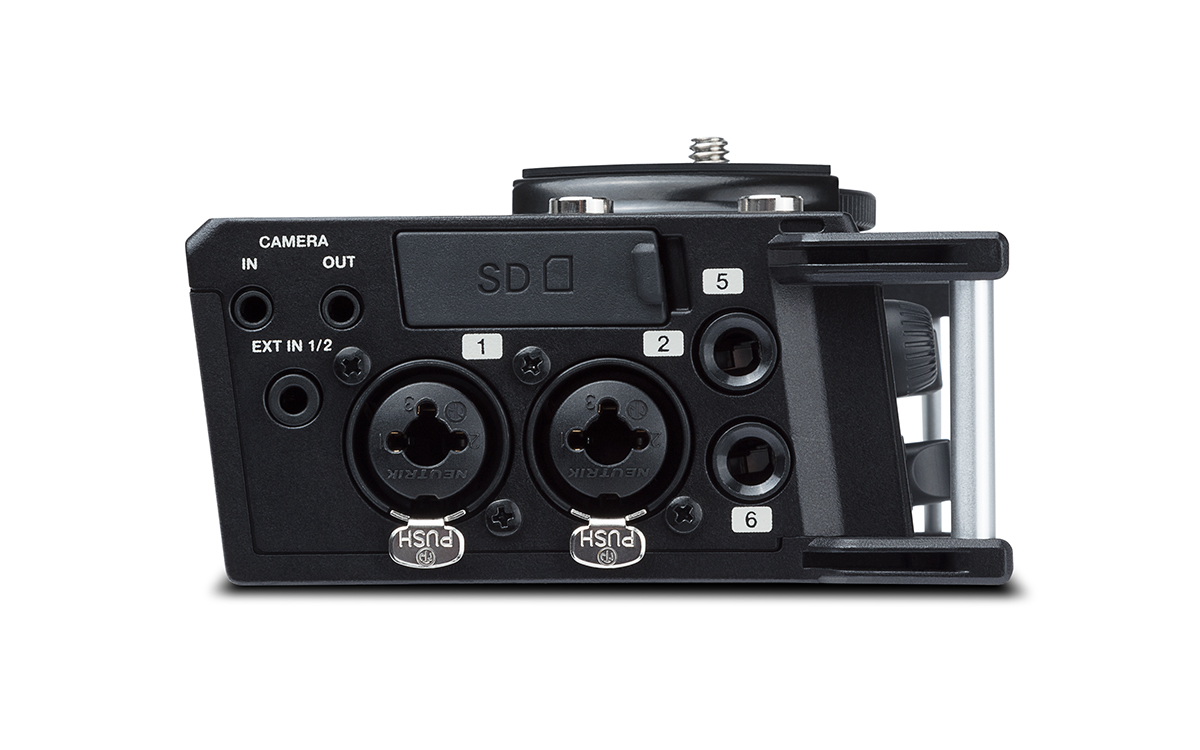

  • DSLR camera mounting bracket

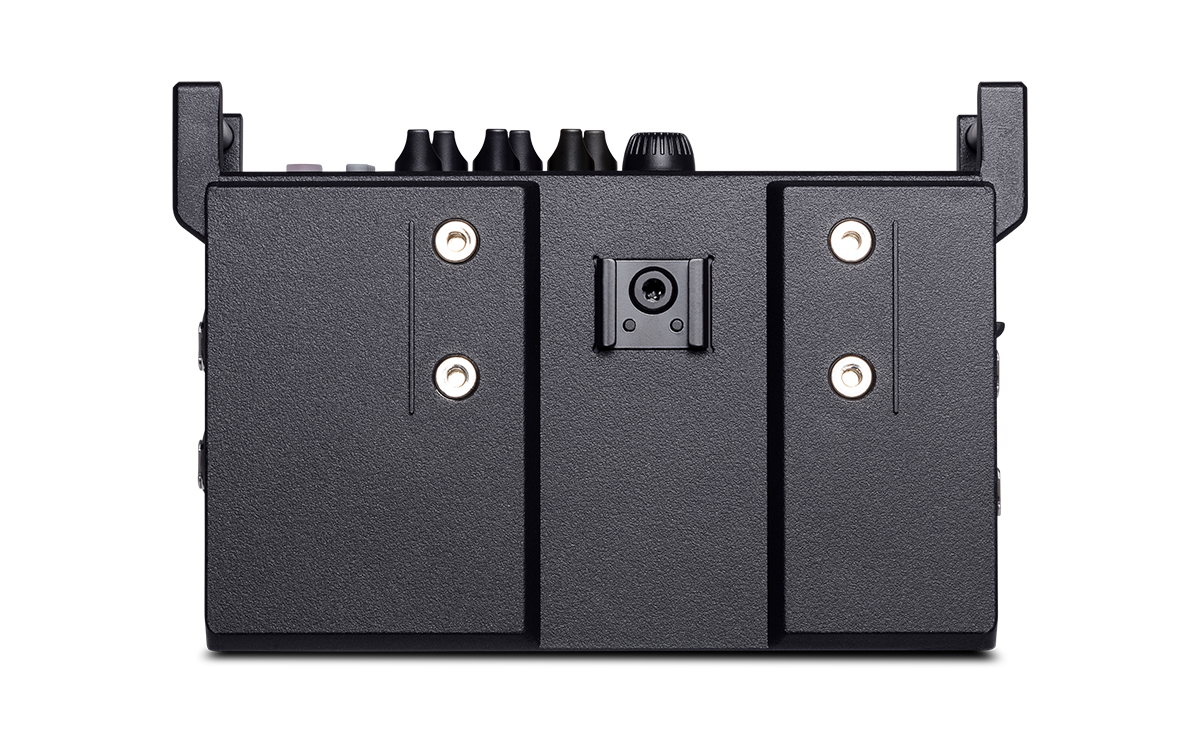

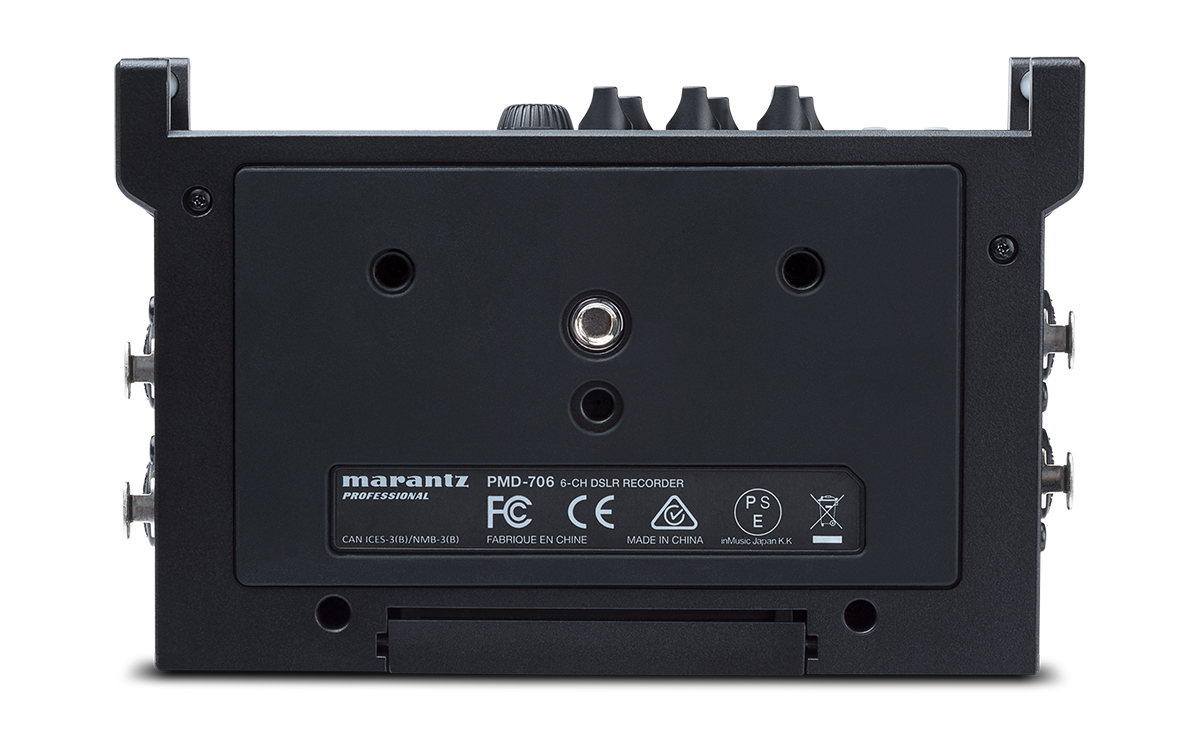

  • Tripod mounting socket on bottom of recorder
  • Connectors
    • (4) XLR+1/4" (6.35mm) inputs
    • (2) 1/4" TRS (6.35mm) inputs
    • (2) 1/8" (3.5mm) inputs
    • (3) 1/8" (3.5mm) outputs
    • (1) Micro-USB port, Type B

  • Power
    • Via (4) AA batteries (Alkaline or NI-MH), USB bus power, or a USB adapter
    • Consumption: 2 W (with phantom power off), 4 W (with 6 channels and phantom power on)
    • Operating Temperature: 41 - 140°F / 5 - 60°C
    • Operating Humidity: 25 - 85%, non-condensing

  • Battery Life: up to 5.5 hours (with phantom power off)
  • Supported SD Media
    • SD card (64 MB - 2 GB)
    • SDHC card (4 - 32 GB)
    • SDXC card (48 - 128 GB)

  • Recording Channels: 6-channels (stereo x 3, mono x 6), 4-channels in Dual Stereo mode, 4-channels max with 96 kHz sampling rate
  • Recording Formats
    • WAV (44.1, 48, or 96 kHz; 16- or 24-bit)
    • BWF (44.1, 48, or 96 kHz; 16- or 24-bit)

  • Recording Modes: Mono, Stereo, Dual Mono, Dual Stereo, Mid/Side Recording, Mix
  • Audio Performance
    • Signal to Noise
      • 93 dB (Line In -> Line Out)
      • 88 - 90 dB (Mic In -> Line Out)
      • 93 dB (Ext In -> Line Out)
      • 93 dB (Camera In -> Line Out)
      • 92 dB (Line In -> Headphone Out)
      • 92 dB (Line In -> Camera Out)

    • Frequency Response: 20 Hz - 20 kHz (±1.0 dB)
    • Input Impedance: 2 kΩ
    • Phantom Power: 48V (±4V, 10 mA/channel), 24V (±4V, 10 mA/channel)

  • Audio Channels
    • Inputs 1, 2, 3, 4 (set to MIC or MIC + phantom power)
      • Input Impedance: 4.7 kΩ
      • Maximum Input Level: -8 dBu
      • Mic Input Gain: +28 dB (Low), +47 dB (Mid), +59 dB (High), +64 dB (Hi Plus)

    • Inputs 1, 2, 3, 4, 5, 6 (set to LINE)
      • Input Impedance: 4.7 kΩ
      • Standard Input Level: 0 dBu
      • Maximum Input Gain: +12 dBu
      • Line Input Gain: +0 dB (Low), +10 dB (mid), +20 dB (High), +30 dB (Hi Plus)

    • External Inputs 1 & 2
      • Input Impedance: 10 kΩ
      • Maximum Input Level: -1 dBV
      • Low +9 dB, Mid +20 dB, High +35 dB, Hi Plus +45 dB

    • Camera Input
      • Input Impedance: 1 kΩ
      • Standard Input Level: -10 dBV
      • Maximum Input Level: +3 dBV

    • 1/8" (3.5mm) Line Output
      • Output Impedance: 1 kΩ
      • Maximum Output Level: +3 dBV

    • 1/8" (3.5mm) Camera Output
      • Output Impedance: 100 Ω
      • Maximum Output Level: -4 dBV


  • Dimensions (width x depth x height): 4.3" x 6.5" x 2.0" (10.9 x 16.5 x 5.1 cm)
  • Weight: 1.20 lbs (0.54 kg)
