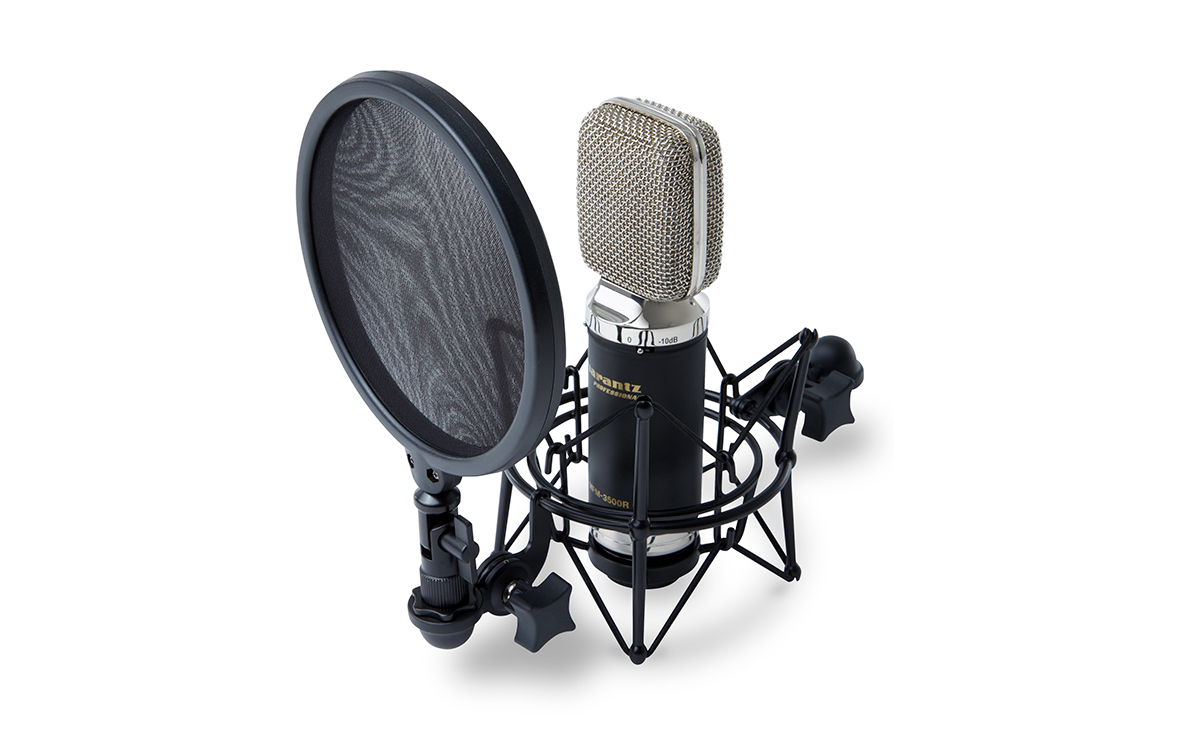

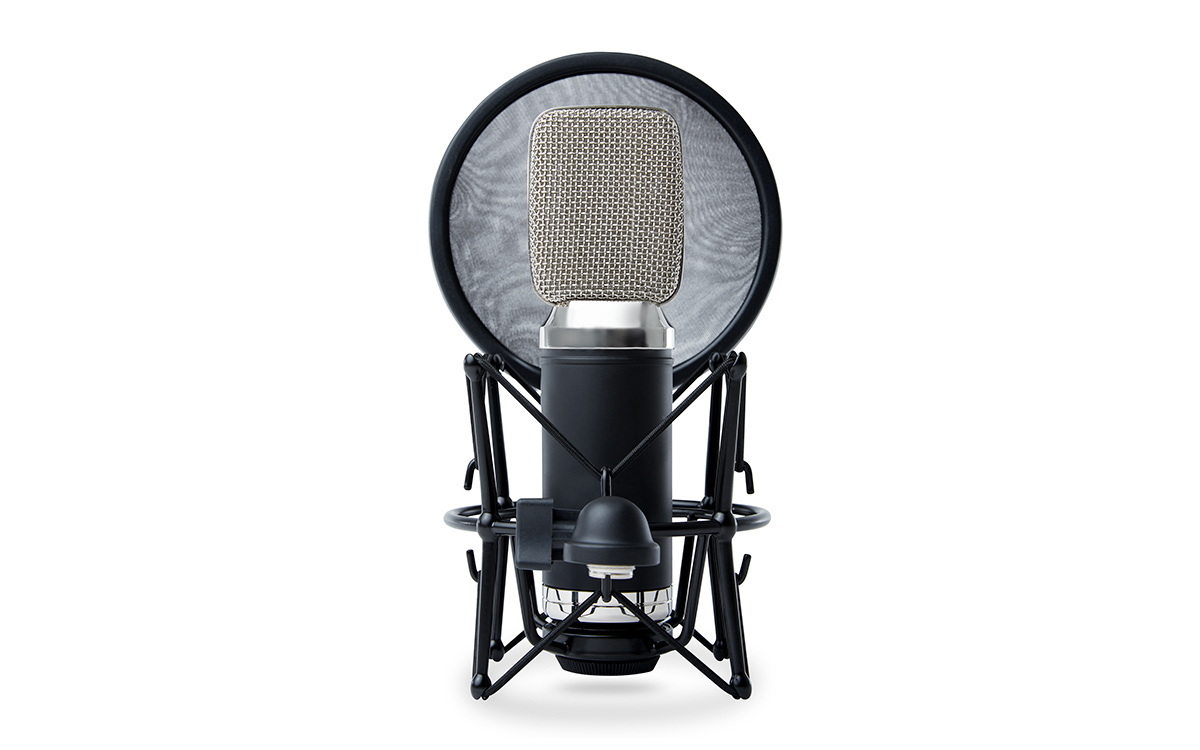

MPM-3500R

Ribbon Microphone with Ultra Low-Mass Diaphragm
(Discontinued Product)


The MPM-3500R is a high-quality ribbon microphone that faithfully captures every sound from the subtle nuances of stringed instruments to rock vocals and percussion.  Superbly designed and crafted with high-grade components, the result is a durable microphone with high sensitivity, low noise and wide dynamic range. Its dipole (figure-eight) pickup pattern enables it to be placed between instruments and capture both equally.

The MPM-3500R’s low-mass ribbon pick-up diaphragm is specially designed to resolve the extremely subtle details often missed by conventional microphones, yet it remains warm-sounding and natural—never harsh or strident—resulting in a particularly vibrant, lifelike recording.


Images

  • Low-mass ribbon diaphragm
  • Polar Pattern: Dipole (Figure-of-eight )
  • Frequency Response: 20–20kHz ±3dB
  • Low-frequency attenuation switch
  • Sensitivity: -34dB ±2dB
  • Output Impedance: 200Ω
  • Max SPL: 135dB
  • S/N Ratio: 79dB
  • Phantom Power Requirement: 48VDC
  • Integrated pop filter and shock mount
  • Element: Ribbon
  • Polar pattern: Dipole (figure-eight)
  • Frequency response: 20–20,000 Hz
  • Sensitivity: -34dB ±2dB (0dB=1V/Pa @ 1kHz)
  • Impedance
  • Output: 200Ω ±30% (@ 1kHz)
  • Load: >1kΩ
  • Self noise: 15dBA
  • Max. SPL: 135dB (THD <1% @ 1kHz)
  • Signal to Noise ratio: 79dB
  • Phantom power requirement: 48VDC, 3mA
  • Switch Controls
    • Low frequency attenuation
    • -10dB pad

  • Dimensions: 8.07" x 1.97" x 2.09" (205 x 50 x 58mm)
  • Weight: 1.08lbs (490g)

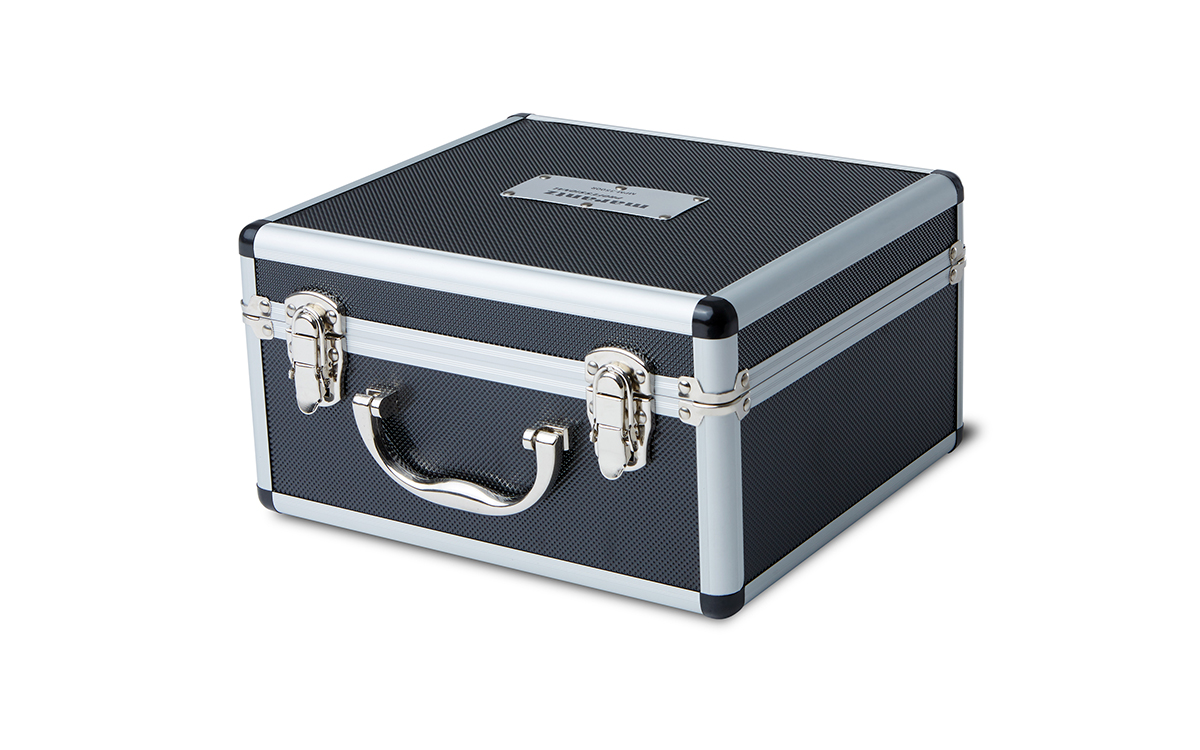

  • MPM-3500R, Pop Filter, Shock Mount, Aluminum Case, Extra Shock Mount Band, User Guide, Safety and Warranty Manual
